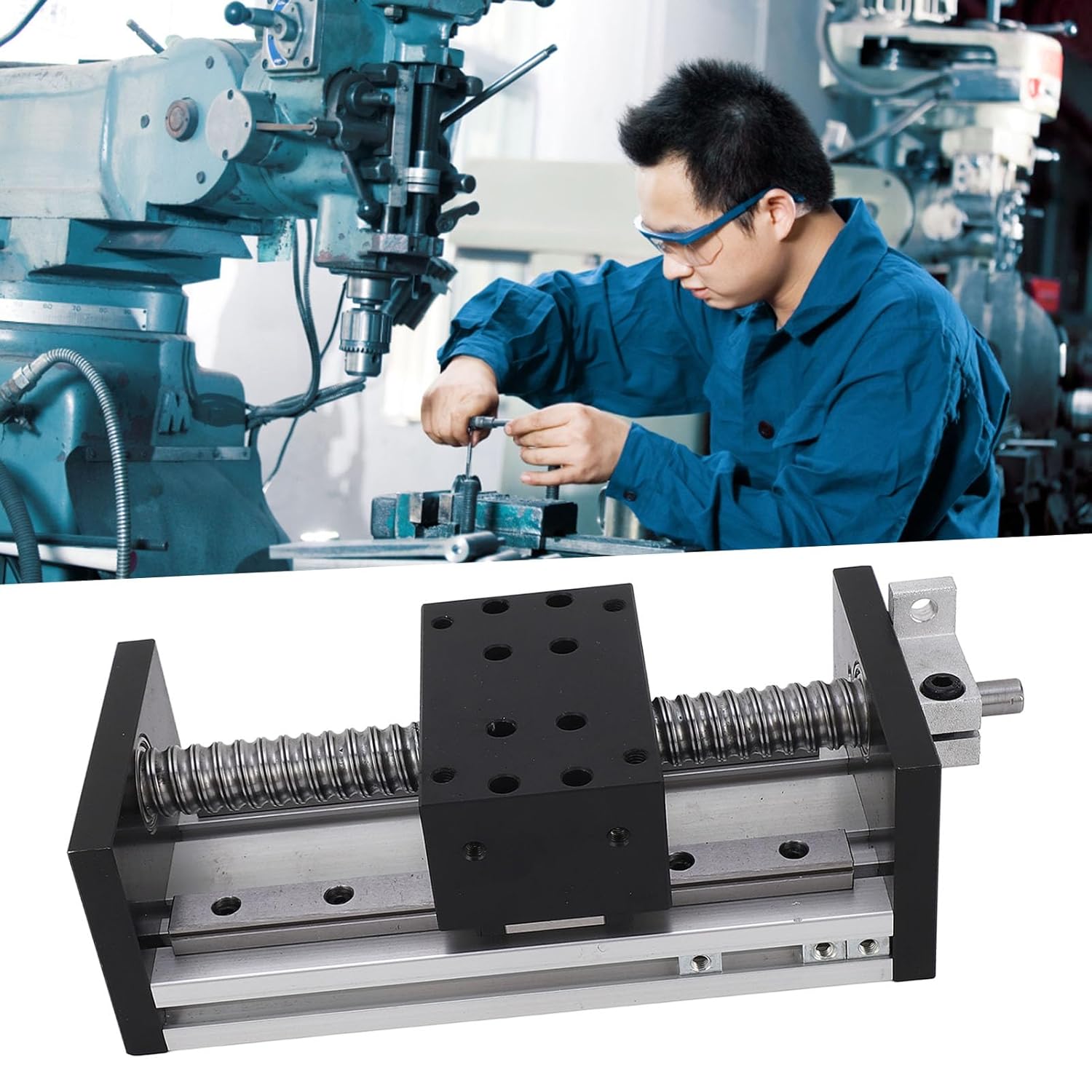

Linear Motion Actuators X, CNC Linear Stage Motion Rail Actuator Linear Motion Actuator Y Z Axis Aluminum Alloy Linear Actuator Kit for Milling Machines, Lathes and Grinders

1. Aluminum Alloy Material: Our CNC linear stage motion actuator is made of aluminum alloy. The maximum horizontal load capacity is 50kg and the maximum vertical load capacity is 20kg2. Working Principle: The linear stage motion actuator converts rotating motion into linear motion, or torsion into axial reactive force, with a rotating hand crank wheel, and the hand wheel has threaded holes for easy assembly.3. Stroke and Accuracy: The maximum stroke of linear motion actuator is 100mm or 3.94in, width is 80mm, and ball screw accuracy is up to 0.03mm.4. Standard M5 Mounting Holes: The linear stage motion actuator uses M5 movable nuts on the side and bottom to make the installation more flexible and versatile.5. Use: The linear stage motion actuator runs smoothly, often used with 8mm trapezoidal screws, and is widely used in industrial machine tools, such as milling machines, lathes, grinders, etc.Specification:Item Type: Linear Motion ActuatorMaterial: Aluminum AlloyMaximum Load:Horizontal ≤ 50KGVertical ≤ 20KGMaximum Accuracy: Positioning Accuracy ≥0.03mmWidth: Approx. Approx. 80mm / 3.15inMaximum Stroke: Approx. 100mm / 3.94inScrew Diameter: 16mm(1605), Approx. 16mm / 0.63inMain Function: Convert Rotational Motion Into Linear Motion, Or Convert Torsional Force Into Axial Repetitive ForceAvailable With: Type, T Type, I Type, Gantry Type, Axes, 3 Axes And 4 Axes CombinationHow to Use:Direct installation and use.PackageList:1 x Slide Rail 1 x Wheel Disc1 x Rocker Arm 1 x Rocker Arm Screw1 x Fixed Parts2 x Screws1 x Hex Wrench

• Aluminum Alloy Material: Our CNC linear stage motion actuator is made of aluminum alloy. The maximum horizontal load capacity is 50kg and the maximum vertical load capacity is 20kg
• Standard M5 Mounting Holes: The linear stage motion actuator uses M5 movable nuts on the side and bottom to make the installation more flexible and versatile.
• Working Principle: The linear stage motion actuator converts rotating motion into linear motion, or torsion into axial reactive force, with a rotating hand crank wheel, and the hand wheel has threaded holes for easy assembly.
• Stroke and Accuracy: The maximum stroke of linear motion actuator is 100mm or 3.94in, width is 80mm, and ball screw accuracy is up to 0.03mm.
• Use: The linear stage motion actuator runs smoothly, often used with 8mm trapezoidal screws, and is widely used in industrial machine tools, such as milling machines, lathes, grinders, etc.
