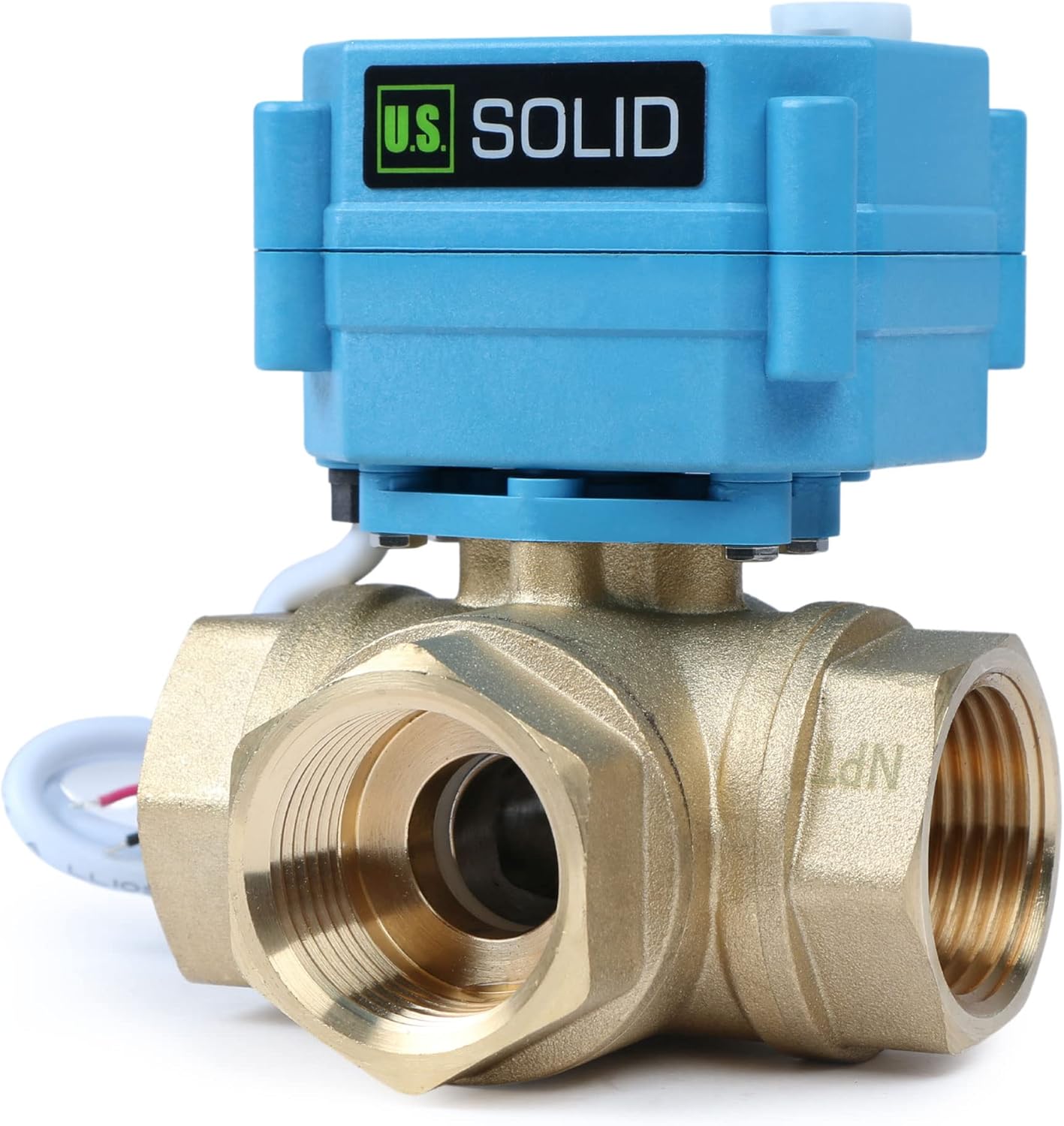

U.S. Solid 1" 3 Way Brass Motorized Ball Valve L Type AC/DC9-24V, Water Shutoff Valve with Manual Function, Standard Port, NOT for Drinking Water
Product details
| Management number | 226132263 | Release Date | 2026/05/09 | List Price | US$49.52 | Model Number | 226132263 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 1. Conserving Space: The 3-way motorized ball valve is smaller in size compared to multiple one-way valves or other valve types, enabling space-saving in pipelines.
- 2. Fluid Control: The motorized ball valve is used to control the direction of fluid flow, featuring one inlet and two outlets or two inlets and one outlet. This configuration allows for diverting the fluid into different pathways to meet various process requirements.
- 3. Heavy Duty Construction: The ball valve is constructed from long-lasting brass, which ensures safety and reliability. With an estimated lifespan of at least 70,000 cycles, it is designed to endure and last.
- 4. Easy Installation: The 3-way brass motorized ball valve is user-friendly and straightforward to install. It includes a built-in capacitor return and 2-wire control with installed position feedback wires. The valve only needs a simple two-wire connection and is mostly de-energized once it's open. Water flows through the left port when power is applied, and it switches to the right port when power is disconnected.
- 5. Dependable Leak-Free Flow: This ball valve has been meticulously designed to ensure a secure and reliable flow, completely free from any leaks. It is rated for a maximum working pressure of 145 PSI and is specifically engineered for bidirectional use. This valve is an ideal choice for applications that involve handling contaminants and prolonged periods of inactivity.
| UPC | 888107104438 |
|---|---|
| ASIN | B0BXX6B2VL |
| Size | 1'' |
| Set Name | Brass 1" 3-Way Motorized Ball Valve AC/DC 9-24V |
| Brand Name | U.S. Solid |
| Unit Count | 1.0 Count |
| Valve Type | Ball Valve |
| Item Weight | 0.97 Kilograms |
| Thread Size | 1 inches |
| Thread Type | NPT |
| Manufacturer | U.S. Solid |
| Model Number | USS-MSV10005 |
| Material Type | Brass |
| Connector Type | Socket Weld, FNPT |
| Exterior Finish | Brass |
| Item Dimensions | 2.52 x 2.09 x 3.94 inches |
| Number of Ports | 3 |
| Maximum Pressure | 145.04 Pound per Square Inch |
| Number of Pieces | 1 |
| Specification Met | IP, ISO 9001 |
| Inlet Connection Size | 1 Inches |
| Inlet Connection Type | Socket Weld |
| Outlet Connection Size | 1 Inches |
| Outlet Connection Type | FNPT |
| Manufacturer Part Number | USS-MSV10013 |
